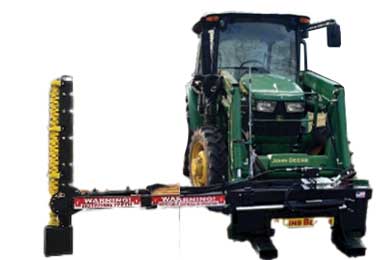

Junior Beaver JB 4TR

4 Foot Limb Trimming & Brush Clearing Attachment

For use with Tractor Loaders

The Limb Beaver Junior Beaver 4TR is a powerful 48-inch limb trimming and brush clearing attachment engineered specifically for tractor loaders, giving operators the strength, reach, and control needed for demanding vegetation-management work. Built for tough environments and daily use, the 4TR offers a reliable mid-sized solution for clearing overhang, maintaining fencerows, shaping trails, and managing dense growth with confidence.

Featuring a 90-degree swing from center using a simple pin-drop mechanism, the Junior Beaver 4TR provides excellent maneuverability for precise cutting along roadsides, field edges, and hard-to-reach areas. With the capability to cut limbs up to 4 inches in diameter and reach working heights of up to 200 inches, this unit delivers the performance required by farmers, land managers, municipalities, and property owners.

Operators can further enhance functionality with optional hydraulic tilt or hydraulic swing for fine-tuned cutter positioning, along with an optional wireless remote control that allows quick and convenient adjustments right from the operator’s seat.

Durable, efficient, and built for serious vegetation control, the Junior Beaver 4TR brings powerful cutting capability and operator-friendly versatility to any tractor loader.

48 inch

cutting path

51

double edge fixed teeth

4,000 - 4,500

RPM

Up to 16.6 feet

cutting height

Product Specs

JB 4TR (48 Inch)

  • 48 inch cutting path
  • 51 double edge fixed teeth
  • Rotor speed of 4,000 – 4,500 RPM
  • Cutting height up to 200 inches
  • Cuts limbs up to 4 inches in diameter
  • Weighs 500 pounds
  • Hydraulic flow of 6 to 15 GPM
  • Hydraulic tilt up to 45 degrees below horizontal position
  • Offset vertical reach 94 inches from center
  • Offset to horizontal reach 125 inches
  • Swing is 90 degrees from center to either side
  • Pin drop swing control
  • Side vertical raised height is 183 inches
  • Out front vertical raised height is 250 inches

Cutting attachment for 50-70 HP tractor loaders.

Applications

  • Encroaching or Overhanging Limb and Brush
  • Farm Fields
  • Trails
  • Right of Ways – Pipeline
  • Line of Sight
  • Easements
  • Lake Side
  • Creeks and Rivers
  • Golf Courses
  • Hunt Clubs
  • Fence Lines
  • Parks
  • Recreational Areas
  • Forestry Service
